Patching OCW for OH

If you search around about how to patch Oracle Database you will find a lot of blog posts teaching how to patch your Oracle Home (OH) (I will not put the list here because it will be enormous – but just follow Mike Dietrich). But most of them write nothing about OCW, how to patch it, or if it is needed to patch OCW.  And unfortunately, even Oracle is not clear about that.

Just to complement, recently Liron Amitzi got one issue related to OCW. And if you search more, you will find that Frits Hoogland wrote something about it too. But in the end, need I to concern about OCW? And, what is OCW?

OCW

OCW means Oracle Clusterware, and basically is the core for the Grid Infrastructure, it is everything there. But for OH is important too because if the database needs to communicate with GI Clusterware it uses the OCW binaries/libraries that are at OH (like srvctl, crstctl) to do that. So, if have some kind of bug at this portion of OCW, it needs to be patched.

The point is that the only place that you can find the OCW patch is under the GI RU patch. Look at the readme for last GI RU 19.8.0.0.200714 (Patch 31305339):

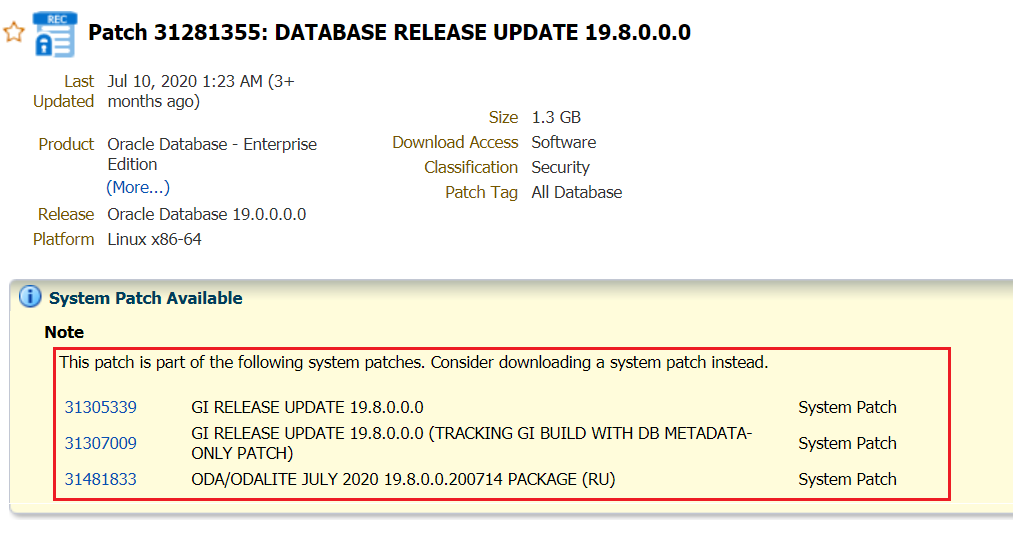

And if you look at the readme for DB RU 19.8.0.0.200714 (Patch 31281355) there is no reference to the OCW patch. So, if apply just the DB RU the OCW will not be updated.

And just to remember you that patch 31305087 does not exist alone to be downloaded:

Patching

Here in this example, I will use a vanilla 19.3 installation. And as you can see the OCW is there at OH:

[oracle@orcloel7 ~]$ export ORACLE_HOME=/u01/app/oracle/product/19.0.0.0/dbhome_1
[oracle@orcloel7 ~]$ export PATH=$ORACLE_HOME/OPatch:$ORACLE_HOME/bin:$PATH
[oracle@orcloel7 ~]$
[oracle@orcloel7 ~]$ which opatch
/u01/app/oracle/product/19.0.0.0/dbhome_1/OPatch/opatch
[oracle@orcloel7 ~]$
[oracle@orcloel7 ~]$ opatch lspatches
29585399;OCW RELEASE UPDATE 19.3.0.0.0 (29585399)
29517242;Database Release Update : 19.3.0.0.190416 (29517242)

OPatch succeeded.
[oracle@orcloel7 ~]$

Now, over this home I will install the DB RU 19.8.0.0.200714 (Patch 31281355), and OJVM as well:

[oracle@orcloel7 ~]$ cd /tmp/install/database/31281355/
[oracle@orcloel7 31281355]$
[oracle@orcloel7 31281355]$ opatch apply
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /u01/app/oracle/product/19.0.0.0/dbhome_1
Central Inventory : /u01/app/oraInventory
   from           : /u01/app/oracle/product/19.0.0.0/dbhome_1/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.2.0.7.0
Log file location : /u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/opatch/opatch2020-10-03_19-01-34PM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   31281355

Do you want to proceed? [y|n]
y
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/u01/app/oracle/product/19.0.0.0/dbhome_1')


Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files...
Applying interim patch '31281355' to OH '/u01/app/oracle/product/19.0.0.0/dbhome_1'
ApplySession: Optional component(s) [ oracle.network.gsm, 19.0.0.0.0 ] , [ oracle.rdbms.ic, 19.0.0.0.0 ] , [ oracle.rdbms.tg4db2, 19.0.0.0.0 ] , [ oracle.tfa, 19.0.0.0.0 ] , [ oracle.oraolap.mgmt, 19.0.0.0.0 ] , [ oracle.xdk.parser.java.jaxb2, 19.0.0.0.0 ] , [ oracle.options.olap.awm, 19.0.0.0.0 ] , [ oracle.net.cman, 19.0.0.0.0 ] , [ oracle.assistants.asm, 19.0.0.0.0 ] , [ oracle.network.cman, 19.0.0.0.0 ] , [ oracle.sqlj, 19.0.0.0.0 ] , [ oracle.assistants.usm, 19.0.0.0.0 ] , [ oracle.options.olap, 19.0.0.0.0 ] , [ oracle.jdk, 1.8.0.191.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.rdbms, 19.0.0.0.0...

Patching component oracle.rdbms.util, 19.0.0.0.0...

Patching component oracle.rdbms.rsf, 19.0.0.0.0...

Patching component oracle.assistants.acf, 19.0.0.0.0...

Patching component oracle.assistants.deconfig, 19.0.0.0.0...

Patching component oracle.assistants.server, 19.0.0.0.0...

Patching component oracle.buildtools.rsf, 19.0.0.0.0...

Patching component oracle.ctx, 19.0.0.0.0...

Patching component oracle.dbjava.ic, 19.0.0.0.0...

Patching component oracle.ldap.rsf, 19.0.0.0.0...

Patching component oracle.network.rsf, 19.0.0.0.0...

Patching component oracle.rdbms.dbscripts, 19.0.0.0.0...

Patching component oracle.rdbms.deconfig, 19.0.0.0.0...

Patching component oracle.sdo, 19.0.0.0.0...

Patching component oracle.sdo.locator.jrf, 19.0.0.0.0...

Patching component oracle.sqlplus, 19.0.0.0.0...

Patching component oracle.xdk, 19.0.0.0.0...

Patching component oracle.rdbms.crs, 19.0.0.0.0...

Patching component oracle.install.deinstalltool, 19.0.0.0.0...

Patching component oracle.dbjava.ucp, 19.0.0.0.0...

Patching component oracle.oraolap.dbscripts, 19.0.0.0.0...

Patching component oracle.rdbms.lbac, 19.0.0.0.0...

Patching component oracle.dbdev, 19.0.0.0.0...

Patching component oracle.marvel, 19.0.0.0.0...

Patching component oracle.network.listener, 19.0.0.0.0...

Patching component oracle.precomp.rsf, 19.0.0.0.0...

Patching component oracle.javavm.client, 19.0.0.0.0...

Patching component oracle.precomp.common.core, 19.0.0.0.0...

Patching component oracle.ldap.rsf.ic, 19.0.0.0.0...

Patching component oracle.network.client, 19.0.0.0.0...

Patching component oracle.ctx.atg, 19.0.0.0.0...

Patching component oracle.ctx.rsf, 19.0.0.0.0...

Patching component oracle.rdbms.drdaas, 19.0.0.0.0...

Patching component oracle.duma, 19.0.0.0.0...

Patching component oracle.javavm.server, 19.0.0.0.0...

Patching component oracle.odbc, 19.0.0.0.0...

Patching component oracle.rdbms.oci, 19.0.0.0.0...

Patching component oracle.rdbms.rman, 19.0.0.0.0...

Patching component oracle.rdbms.dv, 19.0.0.0.0...

Patching component oracle.bali.ice, 11.1.1.7.0...

Patching component oracle.ovm, 19.0.0.0.0...

Patching component oracle.dbjava.jdbc, 19.0.0.0.0...

Patching component oracle.oracore.rsf, 19.0.0.0.0...

Patching component oracle.rdbms.scheduler, 19.0.0.0.0...

Patching component oracle.rdbms.install.common, 19.0.0.0.0...

Patching component oracle.ldap.owm, 19.0.0.0.0...

Patching component oracle.ldap.security.osdt, 19.0.0.0.0...

Patching component oracle.ons, 19.0.0.0.0...

Patching component oracle.rdbms.install.plugins, 19.0.0.0.0...

Patching component oracle.sdo.locator, 19.0.0.0.0...

Patching component oracle.nlsrtl.rsf, 19.0.0.0.0...

Patching component oracle.xdk.rsf, 19.0.0.0.0...

Patching component oracle.sqlplus.ic, 19.0.0.0.0...

Patching component oracle.oraolap, 19.0.0.0.0...

Patching component oracle.xdk.parser.java, 19.0.0.0.0...

Patching component oracle.rdbms.rsf.ic, 19.0.0.0.0...

Patching component oracle.precomp.common, 19.0.0.0.0...

Patching component oracle.precomp.lang, 19.0.0.0.0...

Patching component oracle.jdk, 1.8.0.201.0...
Patch 31281355 successfully applied.
Sub-set patch [29517242] has become inactive due to the application of a super-set patch [31281355].
Please refer to Doc ID 2161861.1 for any possible further required actions.
Log file location: /u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/opatch/opatch2020-10-03_19-01-34PM_1.log

OPatch succeeded.
[oracle@orcloel7 31281355]$
[oracle@orcloel7 31281355]$
[oracle@orcloel7 31281355]$
[oracle@orcloel7 31281355]$

And I will have at the end:

[oracle@orcloel7 ~]$ opatch lspatches
31219897;OJVM RELEASE UPDATE: 19.8.0.0.200714 (31219897)
31281355;Database Release Update : 19.8.0.0.200714 (31281355)
29585399;OCW RELEASE UPDATE 19.3.0.0.0 (29585399)

OPatch succeeded.
[oracle@orcloel7 ~]$

As you can see above, now I have:

  • OJVM: 19.8.0.0.200714 (31219897)
  • Database Release Update: 19.8.0.0.200714 (31281355)
  • OCW: 19.3.0.0.0 (29585399)

Look that OCW still remains at 19.3 base level.

So, to apply the OCW the best way is to apply the GI RU 19.8.0.0.200714 (Patch 31305339) because contains everything, the DB and OCW (here applied over vanilla 19.3 again):

[oracle@orcloel7 ~]$ cd /tmp/install/grid/
[oracle@orcloel7 grid]$
[oracle@orcloel7 grid]$ unzip -qa p31305339_190000_Linux-x86-64.zip
[oracle@orcloel7 grid]$
[oracle@orcloel7 grid]$ cd 31305339/
[oracle@orcloel7 31305339]$
[oracle@orcloel7 31305339]$ ls -l
total 148
drwxr-x--- 5 oracle oinstall   4096 Jul 10 05:20 31281355
drwxr-x--- 5 oracle oinstall   4096 Jul 10 05:17 31304218
drwxr-x--- 5 oracle oinstall   4096 Jul 10 05:18 31305087
drwxr-x--- 4 oracle oinstall   4096 Jul 10 05:20 31335188
drwxr-x--- 2 oracle oinstall   4096 Jul 10 05:18 automation
-rw-rw-r-- 1 oracle oinstall   5054 Jul 10 07:46 bundle.xml
-rw-rw-r-- 1 oracle oinstall 120878 Jul 20 21:04 README.html
-rw-r--r-- 1 oracle oinstall      0 Jul 10 05:17 README.txt
[oracle@orcloel7 31305339]$

######## I PUT HERE JUST TO REMEBER THE PATCH NUMBERS
#31281355            Database Release Update 19.8.0.0.200714         Only DB Home for non-Oracle RAC setup. Both DB Homes and Grid Home for Oracle RAC setup.
#31305087            OCW Release Update 19.8.0.0.200714              Both DB Homes and Grid Home

[oracle@orcloel7 31305339]$
[oracle@orcloel7 31305339]$ cd 31281355
[oracle@orcloel7 31281355]$
[oracle@orcloel7 31281355]$ opatch apply
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /u01/app/oracle/product/19.0.0.0/dbhome_1
Central Inventory : /u01/app/oraInventory
   from           : /u01/app/oracle/product/19.0.0.0/dbhome_1/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.2.0.7.0
Log file location : /u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/opatch/opatch2020-10-03_19-42-04PM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   31281355

Do you want to proceed? [y|n]
y
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/u01/app/oracle/product/19.0.0.0/dbhome_1')


Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files...
Applying interim patch '31281355' to OH '/u01/app/oracle/product/19.0.0.0/dbhome_1'
ApplySession: Optional component(s) [ oracle.network.gsm, 19.0.0.0.0 ] , [ oracle.rdbms.ic, 19.0.0.0.0 ] , [ oracle.rdbms.tg4db2, 19.0.0.0.0 ] , [ oracle.tfa, 19.0.0.0.0 ] , [ oracle.oraolap.mgmt, 19.0.0.0.0 ] , [ oracle.xdk.parser.java.jaxb2, 19.0.0.0.0 ] , [ oracle.options.olap.awm, 19.0.0.0.0 ] , [ oracle.net.cman, 19.0.0.0.0 ] , [ oracle.assistants.asm, 19.0.0.0.0 ] , [ oracle.network.cman, 19.0.0.0.0 ] , [ oracle.sqlj, 19.0.0.0.0 ] , [ oracle.assistants.usm, 19.0.0.0.0 ] , [ oracle.options.olap, 19.0.0.0.0 ] , [ oracle.jdk, 1.8.0.191.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.rdbms, 19.0.0.0.0...

Patching component oracle.rdbms.util, 19.0.0.0.0...

Patching component oracle.rdbms.rsf, 19.0.0.0.0...

Patching component oracle.assistants.acf, 19.0.0.0.0...

Patching component oracle.assistants.deconfig, 19.0.0.0.0...

Patching component oracle.assistants.server, 19.0.0.0.0...

Patching component oracle.buildtools.rsf, 19.0.0.0.0...

Patching component oracle.ctx, 19.0.0.0.0...

Patching component oracle.dbjava.ic, 19.0.0.0.0...

Patching component oracle.ldap.rsf, 19.0.0.0.0...

Patching component oracle.network.rsf, 19.0.0.0.0...

Patching component oracle.rdbms.dbscripts, 19.0.0.0.0...

Patching component oracle.rdbms.deconfig, 19.0.0.0.0...

Patching component oracle.sdo, 19.0.0.0.0...

Patching component oracle.sdo.locator.jrf, 19.0.0.0.0...

Patching component oracle.sqlplus, 19.0.0.0.0...

Patching component oracle.xdk, 19.0.0.0.0...

Patching component oracle.rdbms.crs, 19.0.0.0.0...

Patching component oracle.install.deinstalltool, 19.0.0.0.0...

Patching component oracle.dbjava.ucp, 19.0.0.0.0...

Patching component oracle.oraolap.dbscripts, 19.0.0.0.0...

Patching component oracle.rdbms.lbac, 19.0.0.0.0...

Patching component oracle.dbdev, 19.0.0.0.0...

Patching component oracle.marvel, 19.0.0.0.0...

Patching component oracle.network.listener, 19.0.0.0.0...

Patching component oracle.precomp.rsf, 19.0.0.0.0...

Patching component oracle.javavm.client, 19.0.0.0.0...

Patching component oracle.precomp.common.core, 19.0.0.0.0...

Patching component oracle.ldap.rsf.ic, 19.0.0.0.0...

Patching component oracle.network.client, 19.0.0.0.0...

Patching component oracle.ctx.atg, 19.0.0.0.0...

Patching component oracle.ctx.rsf, 19.0.0.0.0...

Patching component oracle.rdbms.drdaas, 19.0.0.0.0...

Patching component oracle.duma, 19.0.0.0.0...

Patching component oracle.javavm.server, 19.0.0.0.0...

Patching component oracle.odbc, 19.0.0.0.0...

Patching component oracle.rdbms.oci, 19.0.0.0.0...

Patching component oracle.rdbms.rman, 19.0.0.0.0...

Patching component oracle.rdbms.dv, 19.0.0.0.0...

Patching component oracle.bali.ice, 11.1.1.7.0...

Patching component oracle.ovm, 19.0.0.0.0...

Patching component oracle.dbjava.jdbc, 19.0.0.0.0...

Patching component oracle.oracore.rsf, 19.0.0.0.0...

Patching component oracle.rdbms.scheduler, 19.0.0.0.0...

Patching component oracle.rdbms.install.common, 19.0.0.0.0...

Patching component oracle.ldap.owm, 19.0.0.0.0...

Patching component oracle.ldap.security.osdt, 19.0.0.0.0...

Patching component oracle.ons, 19.0.0.0.0...

Patching component oracle.rdbms.install.plugins, 19.0.0.0.0...

Patching component oracle.sdo.locator, 19.0.0.0.0...

Patching component oracle.nlsrtl.rsf, 19.0.0.0.0...

Patching component oracle.xdk.rsf, 19.0.0.0.0...

Patching component oracle.sqlplus.ic, 19.0.0.0.0...

Patching component oracle.oraolap, 19.0.0.0.0...

Patching component oracle.xdk.parser.java, 19.0.0.0.0...

Patching component oracle.rdbms.rsf.ic, 19.0.0.0.0...

Patching component oracle.precomp.common, 19.0.0.0.0...

Patching component oracle.precomp.lang, 19.0.0.0.0...

Patching component oracle.jdk, 1.8.0.201.0...
Patch 31281355 successfully applied.
Sub-set patch [29517242] has become inactive due to the application of a super-set patch [31281355].
Please refer to Doc ID 2161861.1 for any possible further required actions.
Log file location: /u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/opatch/opatch2020-10-03_19-42-04PM_1.log

OPatch succeeded.
[oracle@orcloel7 31281355]$
[oracle@orcloel7 31281355]$ cd ../
[oracle@orcloel7 31305339]$
[oracle@orcloel7 31305339]$ cd 31305087
[oracle@orcloel7 31305087]$
[oracle@orcloel7 31305087]$ opatch apply
Oracle Interim Patch Installer version 12.2.0.1.21
Copyright (c) 2020, Oracle Corporation.  All rights reserved.


Oracle Home       : /u01/app/oracle/product/19.0.0.0/dbhome_1
Central Inventory : /u01/app/oraInventory
   from           : /u01/app/oracle/product/19.0.0.0/dbhome_1/oraInst.loc
OPatch version    : 12.2.0.1.21
OUI version       : 12.2.0.7.0
Log file location : /u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/opatch/opatch2020-10-03_19-49-58PM_1.log

Verifying environment and performing prerequisite checks...
OPatch continues with these patches:   31305087

Do you want to proceed? [y|n]
y
User Responded with: Y
All checks passed.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/u01/app/oracle/product/19.0.0.0/dbhome_1')


Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files...
Applying interim patch '31305087' to OH '/u01/app/oracle/product/19.0.0.0/dbhome_1'
ApplySession: Optional component(s) [ oracle.xag, 19.0.0.0.0 ] , [ oracle.has.crs, 19.0.0.0.0 ] , [ oracle.has.cvu, 19.0.0.0.0 ] , [ oracle.rhp.crs, 19.0.0.0.0 ] , [ oracle.has.crs.cvu, 19.0.0.0.0 ]  not present in the Oracle Home or a higher version is found.

Patching component oracle.rdbms, 19.0.0.0.0...

Patching component oracle.has.rsf, 19.0.0.0.0...

Patching component oracle.rhp.db, 19.0.0.0.0...

Patching component oracle.has.common.cvu, 19.0.0.0.0...

Patching component oracle.has.db.cvu, 19.0.0.0.0...

Patching component oracle.rhp.common, 19.0.0.0.0...

Patching component oracle.has.common, 19.0.0.0.0...

Patching component oracle.has.db, 19.0.0.0.0...
Patch 31305087 successfully applied.
Sub-set patch [29585399] has become inactive due to the application of a super-set patch [31305087].
Please refer to Doc ID 2161861.1 for any possible further required actions.
Log file location: /u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/opatch/opatch2020-10-03_19-49-58PM_1.log

OPatch succeeded.
[oracle@orcloel7 31305087]$
[oracle@orcloel7 31305087]$
[oracle@orcloel7 31305087]$
[oracle@orcloel7 31305087]$

Look above the last part during the patch 31305087 apply. Check the binaries updated.

And after the OJVM patch:

[oracle@orcloel7 ~]$ opatch lspatches
31219897;OJVM RELEASE UPDATE: 19.8.0.0.200714 (31219897)
31305087;OCW RELEASE UPDATE 19.8.0.0.0 (31305087)
31281355;Database Release Update : 19.8.0.0.200714 (31281355)

OPatch succeeded.
[oracle@orcloel7 ~]$

Look above that now I have:

  • OJVM RELEASE UPDATE: 19.8.0.0.200714 (31219897)
  • Database Release Update : 19.8.0.0.200714 (31281355)
  • OCW RELEASE UPDATE 19.8.0.0.0 (31305087)

So, now everything is updated.

I never needed to do that, but you can apply just the OCW patch over the OH. Is possible to do (not recommended):

[oracle@orcloel7 ~]$ $ORACLE_HOME/OPatch/opatch lspatches
31305087;OCW RELEASE UPDATE 19.8.0.0.0 (31305087)
29517242;Database Release Update : 19.3.0.0.190416 (29517242)

OPatch succeeded.
[oracle@orcloel7 ~]$

WHY?

The question is WHY? Why apply the OCW patch for OH is so important? You can argue that I need to apply OCW/GI patch over OH just when I use RAC (because is the only moment that I communicate with GI), but is not true.

First example. Recently the SEHA (Standard Edition High Availability) was released and check the requirements:

You must configure Standard Edition High Availability using an Oracle Database home of version 19.7 or later.

Note: When updating your Oracle Database home using Release Update (RU) 19.7 or later, ensure that you apply the Oracle Clusterware (OCW) RU of the same version to the Oracle Database home.

Check that even the standard edition (that not runs over RAC) needs to have OCW updated (is a requirement), but if you use just the DB RU you don’t meet the “Note”.

Another example is the case for Golden Images. If you need to create one image (to apply over other servers), is important to use the GI as a base patch. With only one patch download you have everything updated and can copy this image to apply over single instances and RAC homes.

If you have experience with Exadata patch apply probably you already know about OCW. If not noticed, just check that since the beginning (I remember being like this since 2010) the master note 888828.1 always refers to apply the GI version and never the DB patch over OH. There is no single note about DB RU (even the bundle patches always included the OCW):

And going further, look that patch DB RU 19.8.0.0.200714 (Patch 31281355) redirects you to download GI RU:

So, I always recommend applying the GI patch over OH to have everything updated when you need to do in-place patches. Is the best practice, even Oracle not telling this. And now, with everything integrated, having OCW up to date is fundamental even for your single instance without GI/Clusterware. If you want a quick reference to patches you can check the note Master Note for Database Proactive Patch Program (Doc ID 756671.1).





Disclaimer: “The postings on this site are my own and don’t necessarily represent my actual employer positions, strategies or opinions. The information here was edited to be useful for general purpose, specific data and identifications were removed to allow reach the generic audience and to be useful for the community. Post protected by copyright.”

2 thoughts on “Patching OCW for OH

Leave a Reply

Your email address will not be published. Required fields are marked *
