Here I will cover the shrink of ASM diskgroup in Exadata environment running VM’s. The process here is the opposite of what I wrote in the previous post, but have a tricky part that demands attention to avoid errors. The same points that you checked for extending are valid now: number the cells, disks per cell, ASM mirroring, and the VM that you want to change continue to be important, but we have more now. Besides that, the post shows how to verify (and “fix”) if you have something in the ASM internal extent map that can block the shrink.
A quick article about a maintenance task for Oracle Exadata when you are using OVM and you divided your storage cell disks for every VM. Here I will show you how to extend your Grid Disks to add more space in your ASM diskgroup.
The first thing is being aware of your environment, before everything you need to know the points below because, they are important to calculate the new space, and to avoid do something wrong:
- Number of cells in your appliance.
- Number of disks for each cell.
- Mirroring for your ASM.
- The VM that you want to add the space.

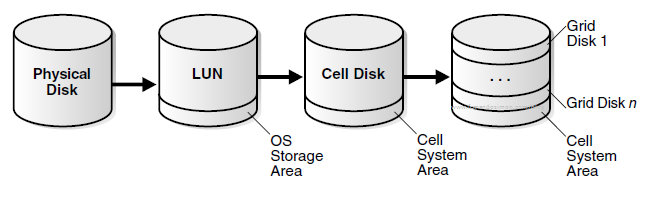

The “normal” Exadata storage cell has 12 disks, the Extreme Flash version uses 8 disks per storage. If you have doubt about how many disks you have per storage cell, you can connect in each one and check the number of celldisks you have. And before continuing, be aware of Exadata disk division:
To do this change we execute three major steps: ASM, Exadata Storage, and ASM again.
As you know, for ODA, you have two options for storage: ACFS or ASM. If you choose ACFS, you can create all versions for databases, from 11g to 18c (until this moment). But if you choose ASM, the 11g will not be compatible.
So, ASM or ACFS? If you choose ACFS, the diskgroup where ACFS runs will be sliced and you have one mount point for each database. If you have, as an example, one system with more than 30 databases, can be complicated to manage all the ACFS mount points. So, ASM it simple and easier solution to sustain. Besides the fact that it is more homogeneous with other database environments (Exadata, RAC’s …etc).
If you choose ASM you can’t use 11g versions or avoid the ACFS mount points for all databases, but you can do a little simple approach to use 11g databases and still use ASM for others. Took one example where just 3 or 4 databases will run over 11g version and all others 30 databases in the environment will be in 12/18. To achieve that, the option, in this case, is using a “manual” ACFS mount point, I will explain.
Recently, in March, I made the reimage from an X5-2 HA ODA and saw a strange behavior during the diskgroup creation and couldn’t reproduce (because involve reimaging again). Basically, the FLASH diskgroup was not created.
But in last May I reimaged another ODA using the same patch/imageversion (126.96.36.199 – Patch 27604623) and was possible to verify again. In both cases, I created the appliance using the CLI “odacli create-appliance” using JSON file because the network uses VLAN (what it is impossible to create using the web interface), and both appliances are identical (X5-2 HA with SSD for RECO and FLASH).
To reimage, I followed the steps in the docs for this version and used the ISO to do the baremetal procedure. If you look in the docs about the options for storage (check here) you can see that there is no single reference to use FLASH diskgroup (or that you need to do that). Checking in the readme/reference JSON files that exist in the folder “/opt/oracle/dcs/sample” under file “sample-oda-ha-json-readme.txt”:
